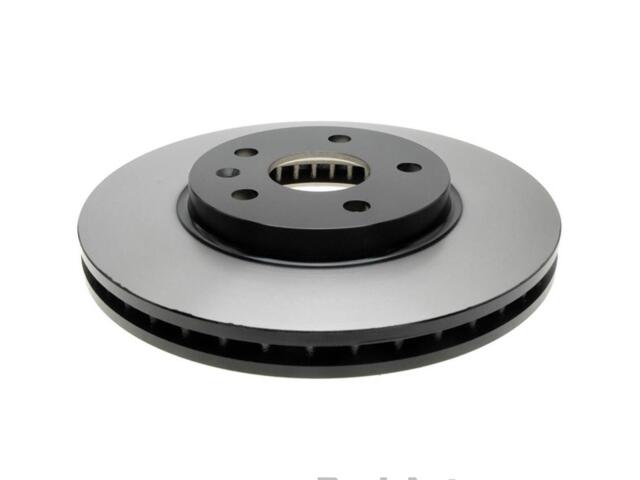

Rotor
ASTRA : 18A2653

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.7
Bolt Circle Diameter (MM): 120
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 67.4mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.12
Discard Thickness (MM): 28.45
Hat Finish: Turned
Height (IN): 2
Height (MM): 51
Length (IN): 12.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 119.9
Mounting Bolt Hole Diameter (IN): 0.645
Mounting Bolt Hole Diameter (MM): 16.4
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 29.95
Outside Diameter (IN): 12.441
Outside Diameter (MM): 316
Overall Height (IN): 2.01
Overall Height (MM): 51.05
Overall Rotor Diameter (mm): 315.98mm
Pad Contact Surface Width (IN): 2.5
Pad Contact Surface Width (MM): 63
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 22.2
Width (IN): 12.8

适用车型

CADILLAC (1)

CTS (3)

3.0L V6 (5)

3.6L V6 (7)

6.2L V8 Supercharged (4)

OE号码

品牌	号码
OE	1924180*
