ASTRA
18A2651SD

第三方数据ASTRA : 18A2651SD

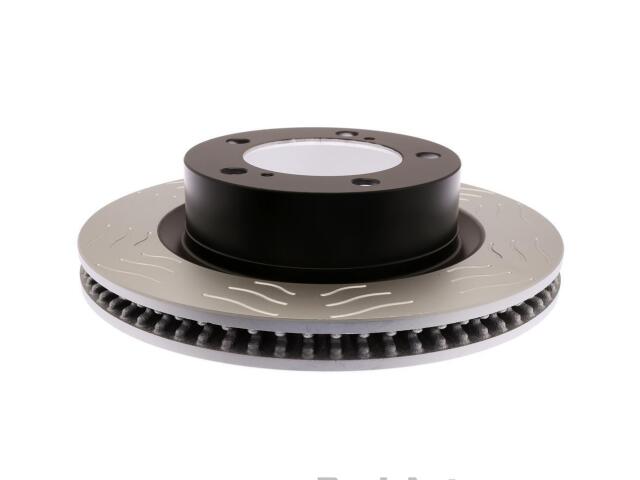

Rotor
ASTRA : 18A2651SD

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.409
Center Hole Diameter (MM): 112
Conventional Or Drum-In-Hat Type Rotor: Conventional
Discard Thickness (IN): 1.142
Discard Thickness (MM): 29
Height (IN): 3.5
Length (IN): 15
Mounting Bolt Hole Circle Diameter (IN): 5.906
Mounting Bolt Hole Circle Diameter (MM): 150
Mounting Bolt Hole Diameter (IN): 0.645
Mounting Bolt Hole Diameter (MM): 16.4
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Original Equipment Replacement: Yes
Outside Diameter (IN): 9.114
Outside Diameter (MM): 231.5
Overall Height (IN): 3.278
Overall Height (MM): 83.25
Solid Or Vented Type Rotor: Vented
Weight (lb): 23.9
Width (IN): 14

适用车型

LEXUS (1)

TOYOTA (1)

OE号码

品牌	号码
OE	1938985*
