ASTRA
18A2644

第三方数据ASTRA : 18A2644

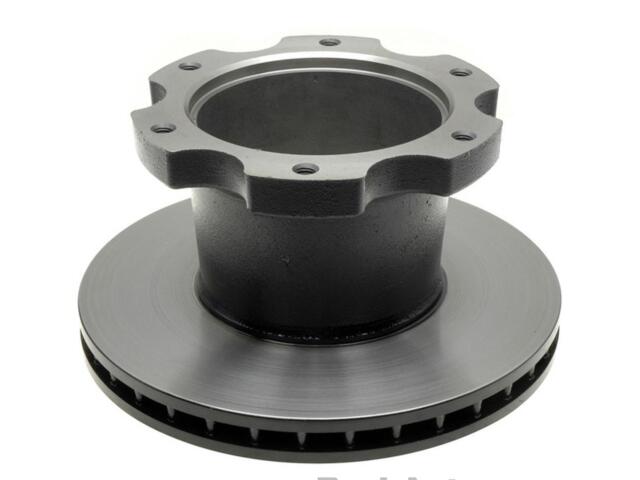

Rotor
ASTRA : 18A2644

Abs Tone Ring Included: Yes
Bolt Circle Diameter (IN): 7.75
Bolt Circle Diameter (MM): 196.8
Discard Thickness (IN): 1.035
Discard Thickness (MM): 26.3
Height (IN): 7
Hub Attached: Yes
Inside Diameter (IN): 6.26
Inside Diameter (MM): 159
Length (IN): 13.5
Mounting Bolt Hole Circle Diameter (IN): 7.75
Mounting Bolt Hole Circle Diameter (MM): 196.85
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.7
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 11.96
Outside Diameter (MM): 303.7
Rotor Outside Diameter (IN): 11.96
Rotor Outside Diameter (MM): 303.7
Solid Or Vented Type Rotor: Vented
Weight (lb): 34
Width (IN): 13

适用车型

HINO (1)

OE号码

品牌	号码
OE	1924179*
