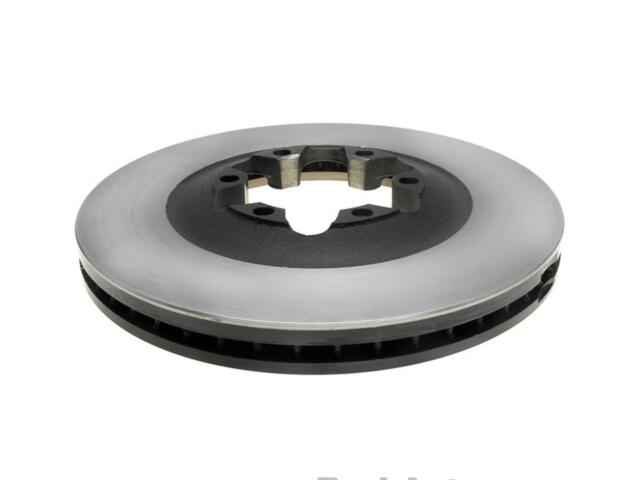

Rotor
ASTRA : 18A2637

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.4
Bolt Circle Diameter (MM): 112
Center Bore Diameter (IN): 3.6in
Center Bore Diameter (MM): 92mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Ground
Discard Thickness (IN): 1.08
Discard Thickness (MM): 27.45
Hat Finish: Turned
Height (IN): 1.6
Height (MM): 40
Length (IN): 12.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 4.41
Mounting Bolt Hole Diameter (MM): 112
Nominal Thickness (IN): 1.14
Nominal Thickness (MM): 28.95
Outside Diameter (IN): 11.7
Outside Diameter (MM): 298
Overall Rotor Diameter (mm): 297.94mm
Pad Contact Surface Width (IN): 2.2
Pad Contact Surface Width (MM): 54.75
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 17.8
Width (IN): 12.3

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	1924174*
