ASTRA
18A2598

第三方数据ASTRA : 18A2598

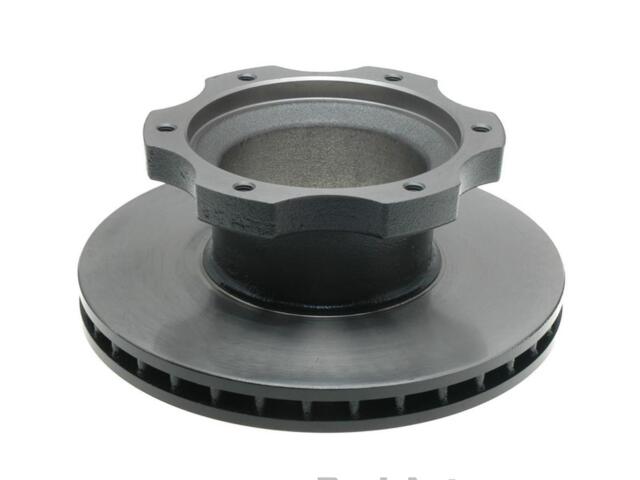

Rotor
ASTRA : 18A2598

Abs Tone Ring Included: No
Balancing Type: Static
Bolt Circle Diameter (IN): 7.5
Bolt Circle Diameter (MM): 190.5
Conventional Or Drum-In-Hat Type Rotor: Conventional
Discard Thickness (IN): 1.035
Discard Thickness (MM): 26.3
Height (IN): 3.3
Hub Attached: Yes
Inside Diameter (IN): 6.22
Inside Diameter (MM): 158
Length (IN): 12.1
Mounting Bolt Hole Circle Diameter (IN): 7.5
Mounting Bolt Hole Circle Diameter (MM): 190.5
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.7
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 11.961
Outside Diameter (MM): 303.8
Rotor Outside Diameter (IN): 11.96
Rotor Outside Diameter (MM): 303.7
Solid Or Vented Type Rotor: Vented
Weight (lb): 27.7
Width (IN): 12.1

适用车型

HINO (2)

OE号码

品牌	号码
OE	1924140*
