ASTRA
18A2597
第三方数据
ASTRA : 18A2597

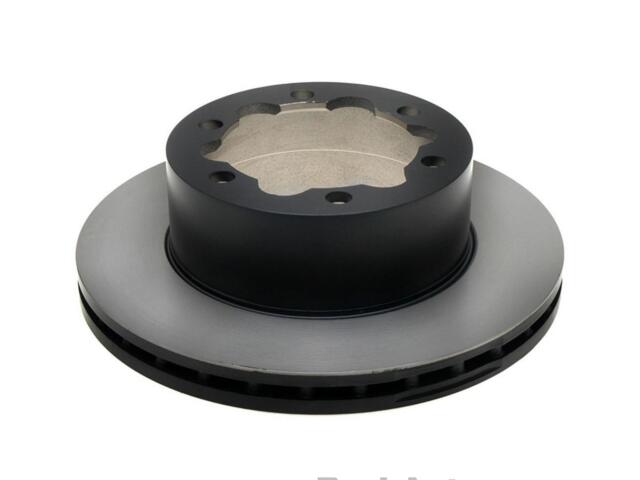

Rotor
ASTRA : 18A2597
Abs Tone Ring Included:
No
Bolt Circle Diameter (IN):
5.7
Bolt Circle Diameter (MM):
145
Center Bore Diameter (IN):
4.7in
Center Bore Diameter (MM):
120mm
Construction:
Full Cast
Conventional Or Drum-In-Hat Type Rotor:
Drum-in-Hat
Disc Finish:
Turned
Discard Thickness (IN):
0.98
Discard Thickness (MM):
24.9
Hat Finish:
Turned
Height (IN):
3.7
Height (MM):
93
Material:
Cast Iron
Mounting Bolt Hole Circle Diameter (IN):
5.7
Mounting Bolt Hole Circle Diameter (MM):
144.8
Mounting Bolt Hole Diameter (IN):
5.7
Mounting Bolt Hole Diameter (MM):
144.8
Nominal Thickness (IN):
1.1
Nominal Thickness (MM):
27.95
Outside Diameter (IN):
11.9
Outside Diameter (MM):
303
Overall Rotor Diameter (mm):
302.77mm
Pad Contact Surface Width (IN):
2.2
Pad Contact Surface Width (MM):
54.75
Rust Resistant Coating:
Yes
Slotted:
No
Solid Or Vented Type Rotor:
Vented
Surface Type:
Smooth
适用车型
VOLKSWAGEN
(2)
CRAFTER
(2)
2.0L L4 DIESEL Turbocharged
(3)
2012
Gold / Professional; Black Hat
Rear; Cab & Chassis
19241399
2013
Gold / Professional; Black Hat
Rear; Cab & Chassis
19241399
2014
Gold / Professional; Black Hat
Rear; Cab & Chassis
19241399
2.5L L5 DIESEL Turbocharged
(3)
2008
Gold / Professional; Black Hat
Rear; Cab & Chassis
19241399
2010
Gold / Professional; Black Hat
Rear; Cab & Chassis
19241399
2012
Gold / Professional; Black Hat
Rear; Cab & Chassis
19241399
CRAFTER VAN
(3)
2.5L L5 DIESEL Turbocharged
(1)
2009
Gold / Professional; Black Hat
Rear; Cab & Chassis
19241399
2.5L L5 DIESEL Turbocharged DOHC
(1)
2011
Gold / Professional; Black Hat
Rear; Cab & Chassis
19241399
2.5L L5 DIESEL Turbocharged SOHC
(1)
2011
Gold / Professional; Black Hat
Rear; Cab & Chassis
19241399
DODGE
(1)
SPRINTER 3500
(2)
3.0L V6 DIESEL Turbocharged
(3)
2007
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2008
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2009
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
3.5L V6
(2)
2007
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2008
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
FREIGHTLINER
(2)
SPRINTER 2500
(3)
2.0L L4 Turbocharged
(2)
2019
Gold / Professional; Black Hat
Rear; with Manual Parking Brake; Vented Rotor
19241399
2020
Gold / Professional; Black Hat
Rear; with Manual Parking Brake; Vented Rotor
19241399
2.1L L4 DIESEL Turbocharged
(1)
2020
Gold / Professional; Black Hat
Rear; with Manual Parking Brake; Vented Rotor
19241399
3.0L V6 DIESEL Turbocharged
(2)
2019
Gold / Professional; Black Hat
Rear; with Manual Parking Brake; Vented Rotor
19241399
2020
Gold / Professional; Black Hat
Rear; with Manual Parking Brake; Vented Rotor
19241399
SPRINTER 3500
(3)
2.1L L4 DIESEL Turbocharged
(4)
2014
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2015
Gold / Professional; Black Hat
Rear; with Single Rear Wheels (SRW); with Dual Rear Wheels (DRW); Vented Rotor; Over 10,000 lb. GVW
19241399
2016
Gold / Professional; Black Hat
Rear; with Single Rear Wheels (SRW); with Dual Rear Wheels (DRW); Vented Rotor; Over 10,000 lb. GVW
19241399
2017
Gold / Professional; Black Hat
Rear; with Single Rear Wheels (SRW); with Dual Rear Wheels (DRW); Vented Rotor; Over 10,000 lb. GVW
19241399
3.0L V6 DIESEL Turbocharged
(12)
2007
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2008
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2009
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2010
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2011
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2012
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2013
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2014
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2015
Gold / Professional; Black Hat
Rear; with Single Rear Wheels (SRW); with Dual Rear Wheels (DRW); Vented Rotor; Over 10,000 lb. GVW
19241399
2016
Gold / Professional; Black Hat
Rear; with Single Rear Wheels (SRW); with Dual Rear Wheels (DRW); Vented Rotor; Over 10,000 lb. GVW
19241399
2017
Gold / Professional; Black Hat
Rear; with Single Rear Wheels (SRW); with Dual Rear Wheels (DRW); Vented Rotor; Over 10,000 lb. GVW
19241399
2018
Gold / Professional; Black Hat
Rear; with Single Rear Wheels (SRW); with Dual Rear Wheels (DRW); Vented Rotor; Over 10,000 lb. GVW
19241399
3.5L V6
(2)
2007
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
2008
Gold / Professional; Black Hat
Rear; with Dual Rear Wheels (DRW); Vented Rotor
19241399
MERCEDES-BENZ
(1)
SPRINTER 3500
(3)
2.0L L4 DIESEL Turbocharged
(1)
2023
Gold / Professional; Black Hat
Fits Rear; Vented Rotoror Rear; with Manual Parking Brake; Vented Rotor
19241399
2.1L L4 DIESEL Turbocharged
(7)
2014
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2015
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2016
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2017
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2020
Gold / Professional; Black Hat
Fits Rear; Vented Rotoror Rear; Sprinter 3500XD; with Manual Parking Brake; Vented Rotor
19241399
2021
Gold / Professional; Black Hat
Fits Rear; Vented Rotoror Rear; with Manual Parking Brake; Vented Rotor
19241399
2022
Gold / Professional; Black Hat
Fits Rear; Vented Rotoror Rear; with Manual Parking Brake; Vented Rotor
19241399
3.0L V6 DIESEL Turbocharged
(13)
2010
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2011
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2012
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2013
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2014
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2015
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2016
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2017
Gold / Professional; Black Hat
Rear; Vented Rotor
19241399
2018
Gold / Professional; Black Hat
Fits Rear; Vented Rotoror Rear; Sprinter 3500XD; with Manual Parking Brake; Vented Rotor
19241399
2019
Gold / Professional; Black Hat
Fits Rear; Vented Rotoror Rear; Sprinter 3500XD; with Manual Parking Brake; Vented Rotor
19241399
2020
Gold / Professional; Black Hat
Fits Rear; Vented Rotoror Rear; Sprinter 3500XD; with Manual Parking Brake; Vented Rotor
19241399
2021
Gold / Professional; Black Hat
Fits Rear; Vented Rotoror Rear; with Manual Parking Brake; Vented Rotor
19241399
2022
Gold / Professional; Black Hat
Fits Rear; Vented Rotoror Rear; with Manual Parking Brake; Vented Rotor
19241399
OE号码
品牌
号码
OE
1924139
*
