ASTRA
18A2593

第三方数据ASTRA : 18A2593

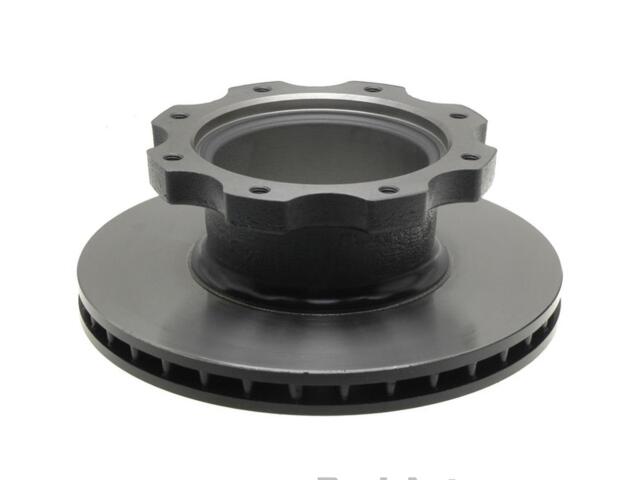

Rotor
ASTRA : 18A2593

Abs Tone Ring Included: No
Balancing Type: Static
Bolt Circle Diameter (IN): 8
Bolt Circle Diameter (MM): 203.2
Conventional Or Drum-In-Hat Type Rotor: Conventional
Discard Thickness (IN): 1.035
Discard Thickness (MM): 26.3
Height (IN): 7
Hub Attached: Yes
Length (IN): 13.5
Mounting Bolt Hole Circle Diameter (IN): 8
Mounting Bolt Hole Circle Diameter (MM): 203.2
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.7
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.748
Outside Diameter (MM): 323.8
Rotor Outside Diameter (IN): 12.74
Rotor Outside Diameter (MM): 323.5
Solid Or Vented Type Rotor: Vented
Weight (lb): 31.7
Width (IN): 13

适用车型

HINO (2)

OE号码

品牌	号码
OE	1924139*
