第三方数据ASTRA : 18A2589

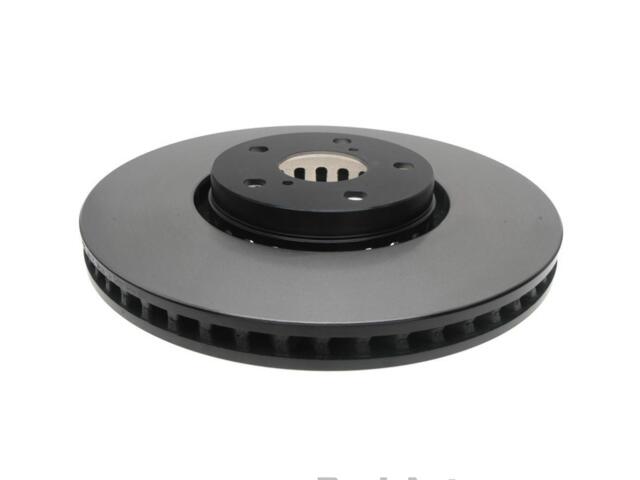

Rotor
ASTRA : 18A2589

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.4in
Center Bore Diameter (MM): 62mm
Center Hole Diameter (IN): 2.441
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27
Hat Finish: Turned
Height (IN): 2
Height (MM): 50.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.566
Mounting Bolt Hole Diameter (MM): 14.4
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 13.15
Outside Diameter (MM): 334
Overall Height (IN): 1.996
Overall Height (MM): 50.7
Overall Rotor Diameter (mm): 334.01mm
Pad Contact Surface Width (IN): 3
Pad Contact Surface Width (MM): 76.7
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

LEXUS (7)

IS200T (1)

IS300 (1)

GS350 (1)

IS350 (1)

GS450H (1)

GS430 (1)

GS460 (1)

OE号码

品牌	号码
OE	1924139*
