ASTRA
18A2548

第三方数据ASTRA : 18A2548

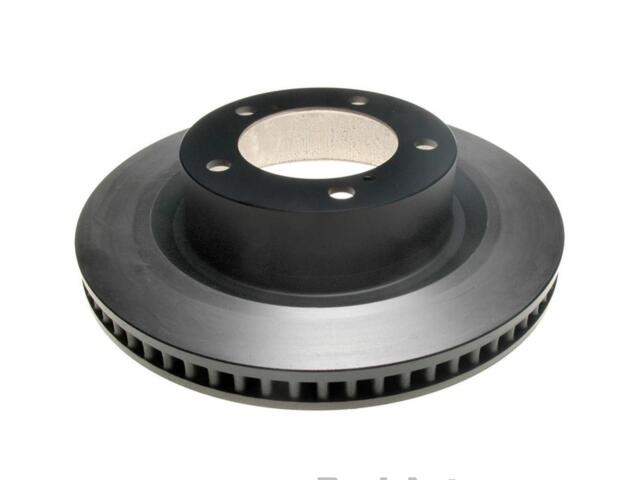

Rotor
ASTRA : 18A2548

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.9
Bolt Circle Diameter (MM): 150
Center Bore Diameter (IN): 4.4in
Center Bore Diameter (MM): 112mm
Center Hole Diameter (IN): 4.41
Center Hole Diameter (MM): 112
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.142
Discard Thickness (MM): 29
Hat Finish: Turned
Height (IN): 3.3
Height (MM): 83.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.906
Mounting Bolt Hole Circle Diameter (MM): 150
Mounting Bolt Hole Diameter (IN): 0.645
Mounting Bolt Hole Diameter (MM): 16.4
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 13.937
Outside Diameter (MM): 354
Overall Height (IN): 3.278
Overall Height (MM): 83.25
Overall Rotor Diameter (mm): 353.82mm
Pad Contact Surface Width (IN): 2.1
Pad Contact Surface Width (MM): 54.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

LEXUS (1)

TOYOTA (3)

TUNDRA (4)

4.0L V6 (8)

4.6L V8 (10)

4.7L V8 (3)

5.7L V8 (15)

SEQUOIA (3)

4.6L V8 (3)

4.7L V8 (5)

5.7L V8 (15)

LAND CRUISER (1)

OE号码

品牌	号码
OE	1923524*
