ASTRA
18A2513

第三方数据ASTRA : 18A2513

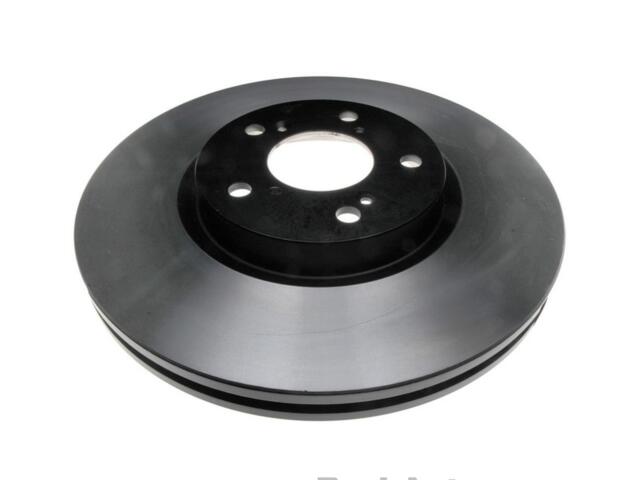

Rotor
ASTRA : 18A2513

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.7
Bolt Circle Diameter (MM): 120
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.1mm
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Hat Finish: Turned
Height (IN): 1.9
Height (MM): 47.2
Length (IN): 14.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 119.9
Mounting Bolt Hole Diameter (IN): 0.566
Mounting Bolt Hole Diameter (MM): 14.4
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.984
Outside Diameter (MM): 329.8
Overall Height (IN): 1.858
Overall Height (MM): 47.2
Overall Rotor Diameter (mm): 329.69mm
Pad Contact Surface Width (IN): 2.7
Pad Contact Surface Width (MM): 68.9
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 22.6
Width (IN): 14.1

适用车型

HONDA (1)

ACURA (3)

RLX (1)

MDX (1)

ZDX (1)

OE号码

品牌	号码
OE	1920408*
