ASTRA
18A2498

第三方数据ASTRA : 18A2498

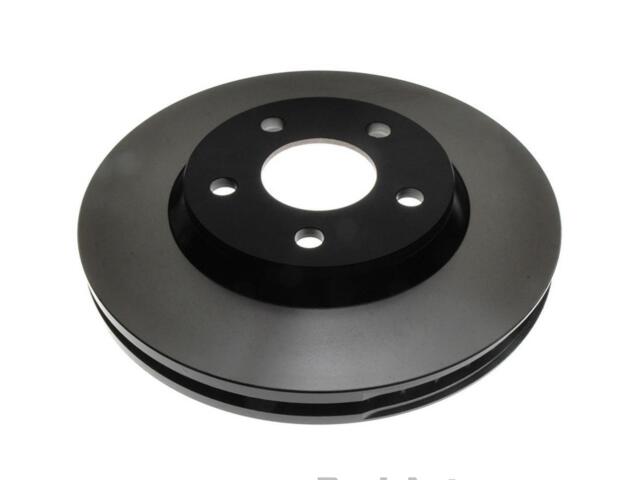

Rotor
ASTRA : 18A2498

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.6
Bolt Circle Diameter (MM): 118
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.7mm
Center Hole Diameter (IN): 2.782
Center Hole Diameter (MM): 70.65
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Ground
Discard Thickness (IN): 1.126
Discard Thickness (MM): 28.6
Hat Finish: Turned
Height (IN): 2
Height (MM): 50.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.646
Mounting Bolt Hole Circle Diameter (MM): 118
Mounting Bolt Hole Diameter (IN): 4.646
Mounting Bolt Hole Diameter (MM): 118
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 11.929
Outside Diameter (MM): 303
Overall Height (IN): 2
Overall Height (MM): 50.8
Overall Rotor Diameter (mm): 302.77mm
Pad Contact Surface Width (IN): 2.3
Pad Contact Surface Width (MM): 57.65
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

BUICK (2)

CADILLAC (1)

CHEVROLET (2)

PONTIAC (1)

OE号码

品牌	号码
OE	1920368*
