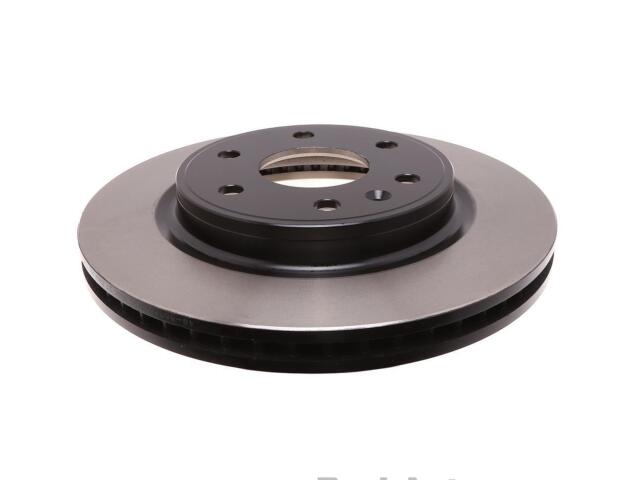

Rotor
ASTRA : 18A2497

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.2
Bolt Circle Diameter (MM): 132
Center Bore Diameter (IN): 3in
Center Bore Diameter (MM): 75.6mm
Center Hole Diameter (IN): 2.98
Center Hole Diameter (MM): 75.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.083
Discard Thickness (MM): 27.5
Hat Finish: Turned
Height (IN): 2.1
Height (MM): 54.5
Length (IN): 13.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.197
Mounting Bolt Hole Circle Diameter (MM): 132
Mounting Bolt Hole Diameter (IN): 0.61
Mounting Bolt Hole Diameter (MM): 15.5
Nominal Thickness (IN): 1.142
Nominal Thickness (MM): 29
Outside Diameter (IN): 12.795
Outside Diameter (MM): 325
Overall Height (IN): 2.15
Overall Height (MM): 54.6
Overall Rotor Diameter (mm): 324.87mm
Pad Contact Surface Width (IN): 2.1
Pad Contact Surface Width (MM): 53.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 22
Width (IN): 13.1

适用车型

BUICK (1)

CHEVROLET (1)

GMC (2)

SATURN (1)

OE号码

品牌	号码
OE	1920368*
