ASTRA
18A2494

第三方数据ASTRA : 18A2494

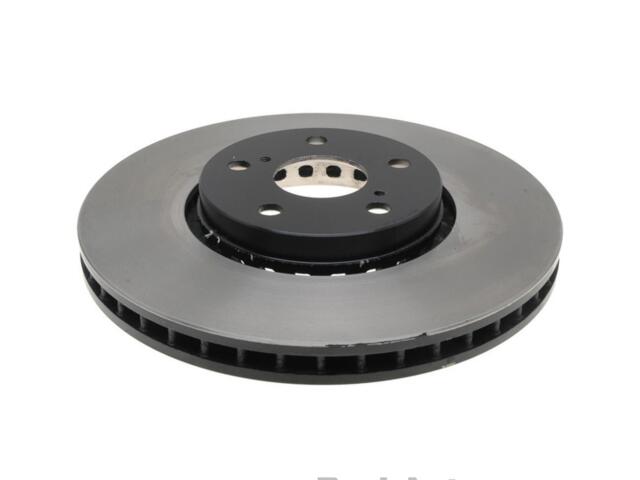

Rotor
ASTRA : 18A2494

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.4in
Center Bore Diameter (MM): 62mm
Center Hole Diameter (IN): 2.441
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Ground
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Hat Finish: Turned
Height (IN): 1.9
Height (MM): 49.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.566
Mounting Bolt Hole Diameter (MM): 14.4
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.559
Outside Diameter (MM): 319
Overall Height (IN): 1.937
Overall Height (MM): 49.2
Overall Rotor Diameter (mm): 318.77mm
Pad Contact Surface Width (IN): 2.3
Pad Contact Surface Width (MM): 58.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

LEXUS (2)

OE号码

品牌	号码
OE	1920367*
