第三方数据ASTRA : 18A2475

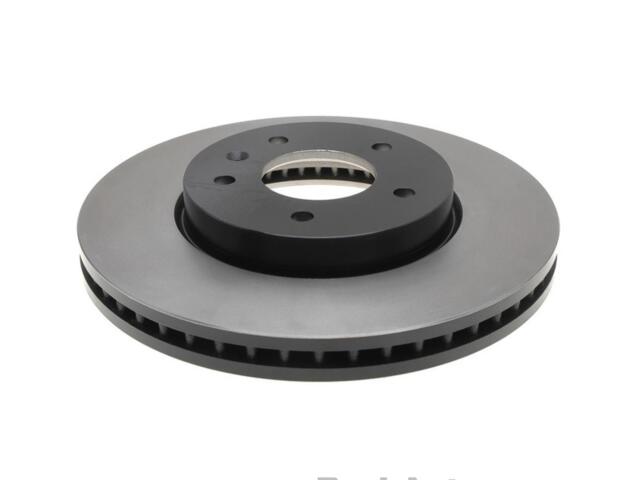

Rotor
ASTRA : 18A2475

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 115
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.7mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.079
Discard Thickness (MM): 27.4
Hat Finish: Turned
Height (IN): 2
Height (MM): 51.5
Length (IN): 12
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.495
Mounting Bolt Hole Diameter (MM): 12.55
Nominal Thickness (IN): 1.145
Nominal Thickness (MM): 29.1
Outside Diameter (IN): 11.651
Outside Diameter (MM): 295.95
Overall Height (IN): 2.03
Overall Height (MM): 51.55
Overall Rotor Diameter (mm): 295.91mm
Pad Contact Surface Width (IN): 2.3
Pad Contact Surface Width (MM): 58
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 19
Width (IN): 12

适用车型

SUZUKI (1)

CHEVROLET (2)

CAPTIVA SPORT (3)

EQUINOX (2)

PONTIAC (1)

SATURN (1)

OE号码

品牌	号码
OE	1920346*
