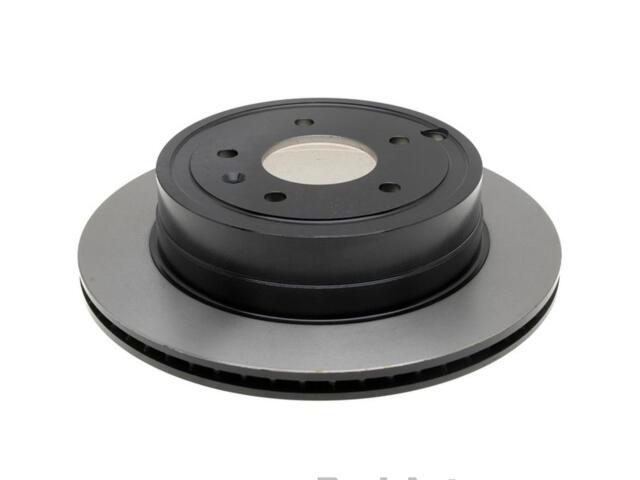

Rotor
ASTRA : 18A2472

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 115
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.7mm
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.724
Discard Thickness (MM): 18.4
Hat Finish: Turned
Height (IN): 2.8
Height (MM): 71.7
Length (IN): 12.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.495
Mounting Bolt Hole Diameter (MM): 12.55
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20
Outside Diameter (IN): 11.929
Outside Diameter (MM): 303
Overall Height (IN): 2.823
Overall Height (MM): 71.7
Overall Rotor Diameter (mm): 302.77mm
Pad Contact Surface Width (IN): 1.7
Pad Contact Surface Width (MM): 43.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 16.4
Width (IN): 13.3

适用车型

SUZUKI (1)

CHEVROLET (2)

CAPTIVA SPORT (2)

EQUINOX (2)

PONTIAC (1)

SATURN (1)

OE号码

品牌	号码
OE	1920346*
