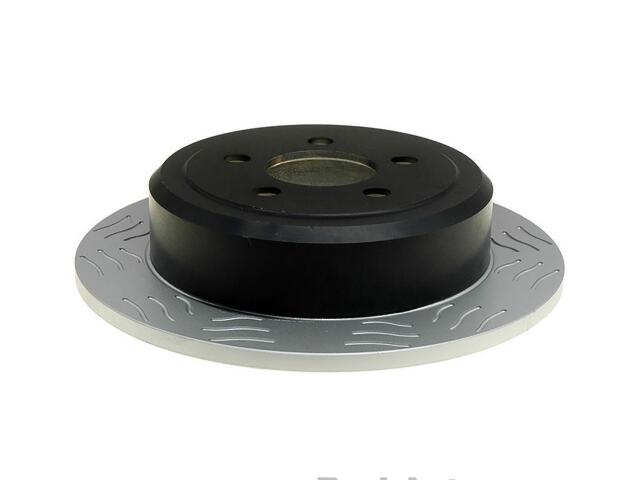

Rotor
ASTRA : 18A2471SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72.1mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Disc Finish: Turned
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.4
Hat Finish: Turned
Height (IN): 3
Height (MM): 76.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 11.95
Outside Diameter (IN): 12.4
Outside Diameter (MM): 316
Overall Rotor Diameter (mm): 315.98mm
Pad Contact Surface Width (IN): 1.7
Pad Contact Surface Width (MM): 44.15
Rust Resistant Coating: Yes
Slotted: Yes
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

JEEP (1)

DODGE (1)

OE号码

品牌	号码
OE	8887519*
