ASTRA
18A2469

第三方数据ASTRA : 18A2469

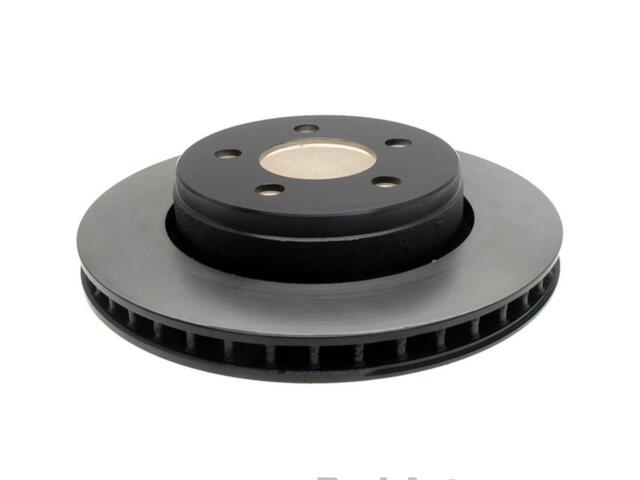

Rotor
ASTRA : 18A2469

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.039
Discard Thickness (MM): 26.4
Hat Finish: Turned
Height (IN): 2.5
Height (MM): 64.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.654
Mounting Bolt Hole Diameter (MM): 16.6
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.896
Outside Diameter (MM): 302.15
Overall Height (IN): 2.524
Overall Height (MM): 64.1
Overall Rotor Diameter (mm): 302.01mm
Pad Contact Surface Width (IN): 2.1
Pad Contact Surface Width (MM): 53.35
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

JEEP (1)

DODGE (1)

OE号码

品牌	号码
OE	1920346*
