18A2468

第三方数据ASTRA : 18A2468

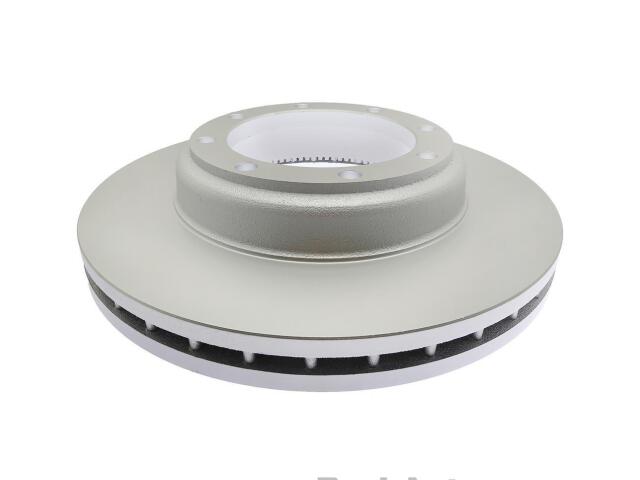

Rotor
ASTRA : 18A2468

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 7.3
Bolt Circle Diameter (MM): 184.2
Center Bore Diameter (IN): 6in
Center Bore Diameter (MM): 152.4mm
Center Hole Diameter (IN): 6.001
Center Hole Diameter (MM): 152.45
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.419
Discard Thickness (MM): 36.05
Hat Finish: Turned
Height (IN): 3.4
Height (MM): 86.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 7.25
Mounting Bolt Hole Circle Diameter (MM): 184.15
Mounting Bolt Hole Diameter (IN): 0.595
Mounting Bolt Hole Diameter (MM): 15.1
Nominal Thickness (IN): 1.535
Nominal Thickness (MM): 39
Outside Diameter (IN): 15.374
Outside Diameter (MM): 390.5
Overall Height (IN): 3.402
Overall Height (MM): 86.4
Overall Rotor Diameter (mm): 390.39mm
Pad Contact Surface Width (IN): 2.7
Pad Contact Surface Width (MM): 67.35
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	1920346*
