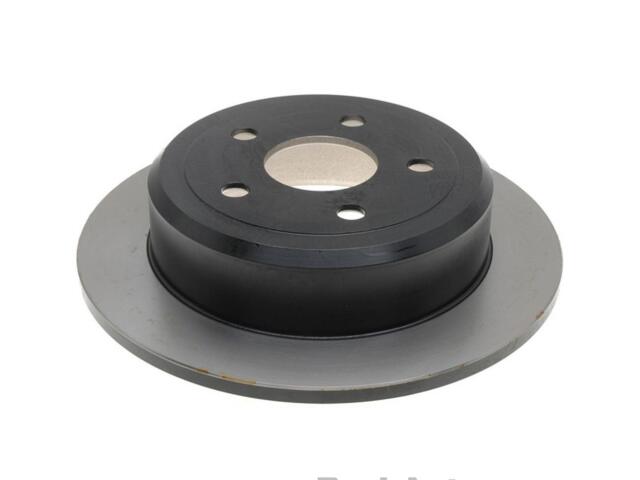

Rotor
ASTRA : 18A2465

Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 127
Center Hole Diameter (IN): 2.84
Center Hole Diameter (MM): 72.15
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Discard Thickness (IN): 0.409
Discard Thickness (MM): 10.4
Hat Finish: Painted
Height (IN): 4.2
Length (IN): 13
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.654
Mounting Bolt Hole Diameter (MM): 16.6
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12
Outside Diameter (IN): 12.441
Outside Diameter (MM): 316
Overall Height (IN): 3.01
Overall Height (MM): 76.45
Overall Rotor Diameter (mm): 315.98mm
Slotted: No
Solid Or Vented Type Rotor: Solid
Weight (lb): 16.5
Width (IN): 13

适用车型

JEEP (2)

OE号码

品牌	号码
OE	1920345*
