ASTRA
18A2464

第三方数据ASTRA : 18A2464

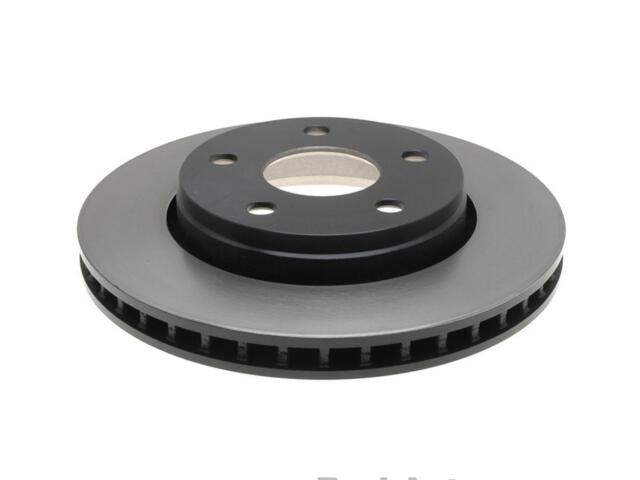

Rotor
ASTRA : 18A2464

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 127
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72.1mm
Center Hole Diameter (IN): 2.84
Center Hole Diameter (MM): 72.15
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.039
Discard Thickness (MM): 26.4
Hat Finish: Turned
Height (IN): 2.2
Height (MM): 55.1
Length (IN): 12.38
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.654
Mounting Bolt Hole Diameter (MM): 16.6
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 2.169
Overall Height (MM): 55.1
Overall Rotor Diameter (mm): 302.01mm
Pad Contact Surface Width (IN): 2.2
Pad Contact Surface Width (MM): 55.25
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 16.3
Width (IN): 12.38

适用车型

JEEP (2)

OE号码

品牌	号码
OE	1920345*
