ASTRA
18A2460PV

第三方数据ASTRA : 18A2460PV

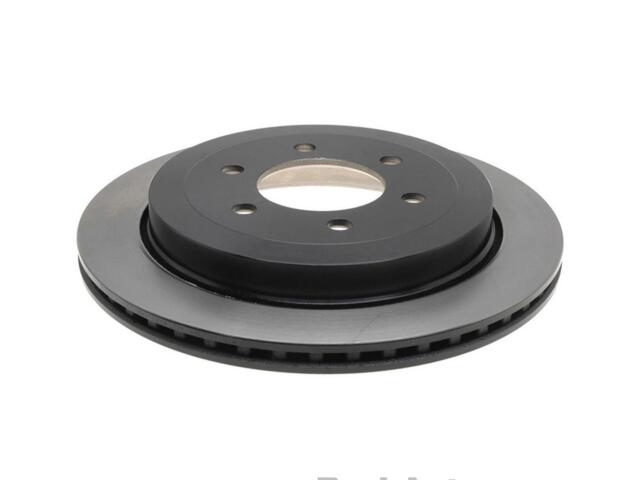

Rotor
ASTRA : 18A2460PV

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.314
Bolt Circle Diameter (MM): 135
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20
Height (IN): 2.2
Height (MM): 55.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.315
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.636
Mounting Bolt Hole Diameter (MM): 16.15
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22
Outside Diameter (IN): 13.474
Outside Diameter (MM): 342.25
Overall Height (IN): 2.204
Overall Height (MM): 56
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	1929242*

品牌	号码
OE	1931074*
