ASTRA
18A2457

第三方数据ASTRA : 18A2457

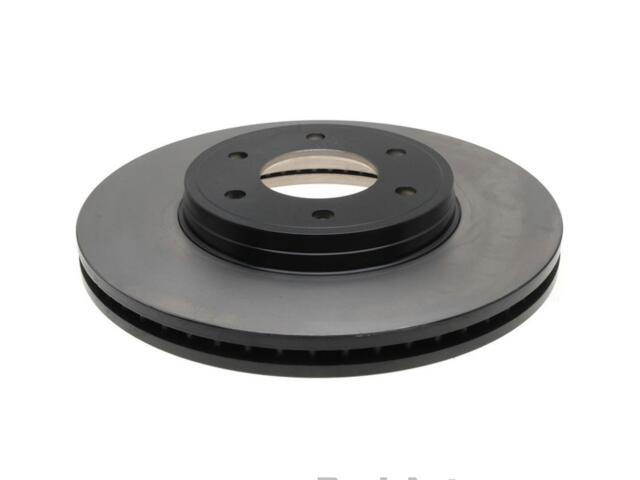

Rotor
ASTRA : 18A2457

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 127
Center Bore Diameter (IN): 3.1in
Center Bore Diameter (MM): 79.2mm
Center Hole Diameter (IN): 3.117
Center Hole Diameter (MM): 79.15
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.083
Discard Thickness (MM): 27.5
Hat Finish: Turned
Height (IN): 2.1
Height (MM): 54.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.526
Mounting Bolt Hole Diameter (MM): 13.35
Nominal Thickness (IN): 1.142
Nominal Thickness (MM): 29
Outside Diameter (IN): 12.795
Outside Diameter (MM): 325
Overall Height (IN): 2.142
Overall Height (MM): 54.4
Overall Rotor Diameter (mm): 324.87mm
Pad Contact Surface Width (IN): 2.5
Pad Contact Surface Width (MM): 63.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

SAAB (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	1920344*
