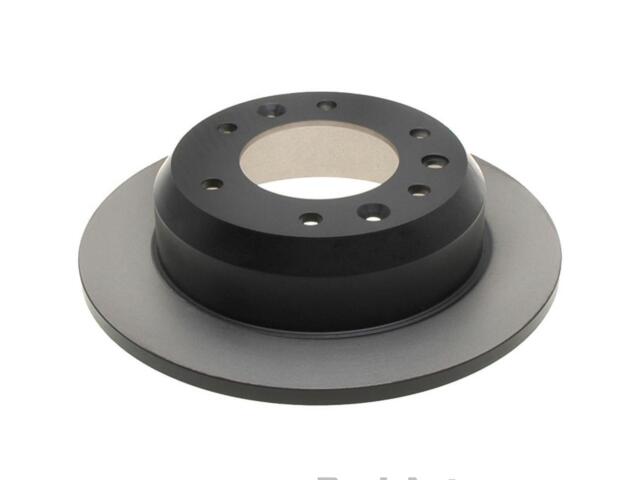

Rotor
ASTRA : 18A2447

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Center Bore Diameter (IN): 3.8in
Center Bore Diameter (MM): 96.3mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.409
Discard Thickness (MM): 10.4
Hat Finish: Turned
Height (IN): 2.7
Height (MM): 69.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.495
Mounting Bolt Hole Diameter (MM): 12.55
Nominal Thickness (IN): 0.473
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 2.74
Overall Height (MM): 69.6
Overall Rotor Diameter (mm): 302.01mm
Pad Contact Surface Width (IN): 1.9
Pad Contact Surface Width (MM): 47.25
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

HYUNDAI (1)

KIA (1)

OE号码

品牌	号码
OE	1920343*
