ASTRA
18A2433SD

第三方数据ASTRA : 18A2433SD

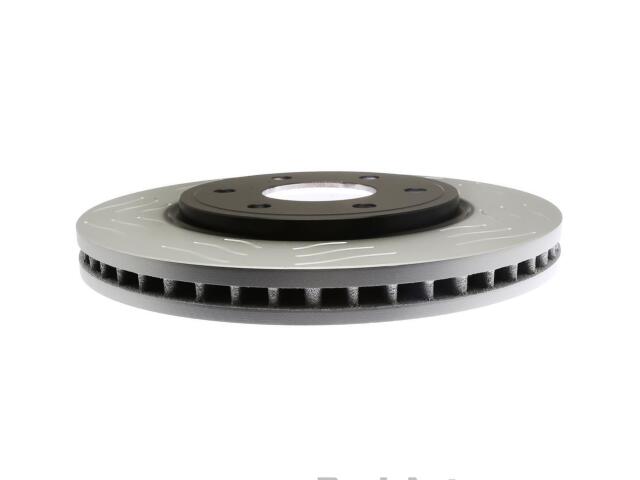

Rotor
ASTRA : 18A2433SD

Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Bare
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Height (IN): 2
Inside Diameter (IN): 7.106
Inside Diameter (MM): 180.5
Length (IN): 12
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.496
Mounting Bolt Hole Diameter (MM): 12.6
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.134
Outside Diameter (MM): 282.8
Overall Height (IN): 1.5
Overall Height (MM): 38.1
Solid Or Vented Type Rotor: Vented
Weight (lb): 16.3
Width (IN): 12.9

适用车型

NISSAN (1)

SUZUKI (1)

OE号码

品牌	号码
OE	1938364*
