ASTRA
18A2431

第三方数据ASTRA : 18A2431

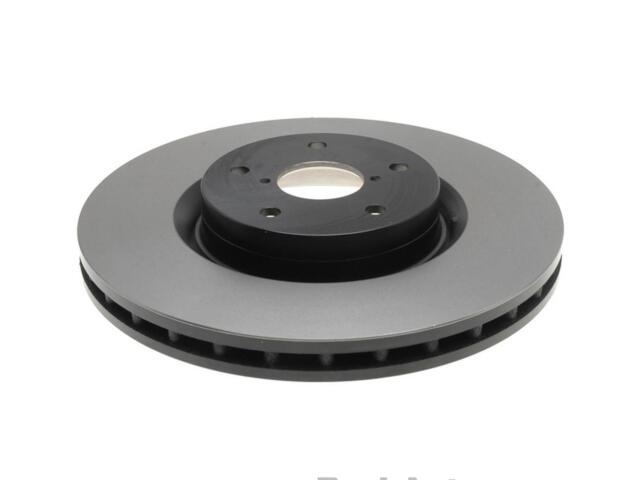

Rotor
ASTRA : 18A2431

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.3in
Center Bore Diameter (MM): 58mm
Center Hole Diameter (IN): 2.284
Center Hole Diameter (MM): 58
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28
Hat Finish: Turned
Height (IN): 2.1
Height (MM): 52.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.507
Mounting Bolt Hole Diameter (MM): 12.9
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.843
Outside Diameter (MM): 326.2
Overall Height (IN): 2.075
Overall Height (MM): 52.7
Overall Rotor Diameter (mm): 326.14mm
Pad Contact Surface Width (IN): 2.5
Pad Contact Surface Width (MM): 64.35
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

SUBARU (3)

IMPREZA (1)

WRX (1)

WRX STI (1)

OE号码

品牌	号码
OE	1920342*
