第三方数据ASTRA : 18A2429

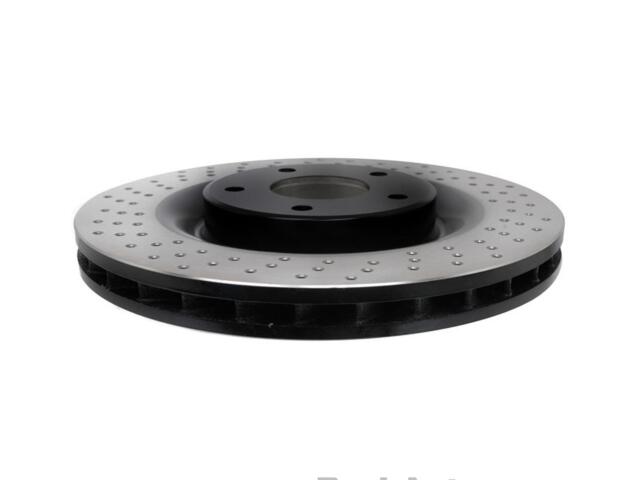

Rotor
ASTRA : 18A2429

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.8
Bolt Circle Diameter (MM): 120.7
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.7mm
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.181
Discard Thickness (MM): 30
Hat Finish: Turned
Height (IN): 1.8
Height (MM): 45.3
Length (IN): 14.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.75
Mounting Bolt Hole Circle Diameter (MM): 120.65
Mounting Bolt Hole Diameter (IN): 0.526
Mounting Bolt Hole Diameter (MM): 13.35
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 13.386
Outside Diameter (MM): 340
Overall Height (IN): 1.785
Overall Height (MM): 45.35
Overall Rotor Diameter (mm): 339.85mm
Pad Contact Surface Width (IN): 2.2
Pad Contact Surface Width (MM): 55.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 23.2
Width (IN): 14.1

适用车型

CADILLAC (1)

CHEVROLET (1)

CORVETTE (4)

6.0L V8 (3)

6.2L V8 (6)

6.2L V8 Supercharged (3)

7.0L V8 (6)

OE号码

品牌	号码
OE	1920342*
