ASTRA
18A2422

第三方数据ASTRA : 18A2422

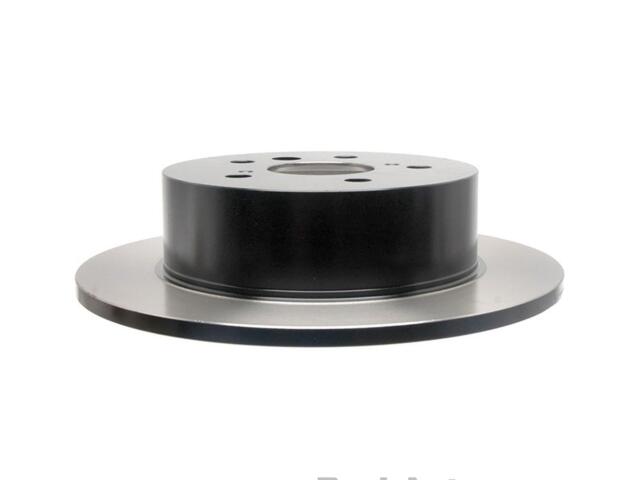

Rotor
ASTRA : 18A2422

Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Discard Thickness (IN): 0.335
Discard Thickness (MM): 8.5
Hat Finish: Painted
Height (IN): 3.62
Length (IN): 12.38
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.566
Mounting Bolt Hole Diameter (MM): 14.4
Nominal Thickness (IN): 0.392
Nominal Thickness (MM): 9.95
Outside Diameter (IN): 11.061
Outside Diameter (MM): 280.95
Overall Height (IN): 2.62
Overall Height (MM): 66.55
Overall Rotor Diameter (mm): 280.92mm
Slotted: No
Solid Or Vented Type Rotor: Solid
Weight (lb): 10.6
Width (IN): 12.38

适用车型

LEXUS (1)

TOYOTA (2)

CAMRY (4)

AVALON (1)

OE号码

品牌	号码
OE	1920143*
