ASTRA
18A2414

第三方数据ASTRA : 18A2414

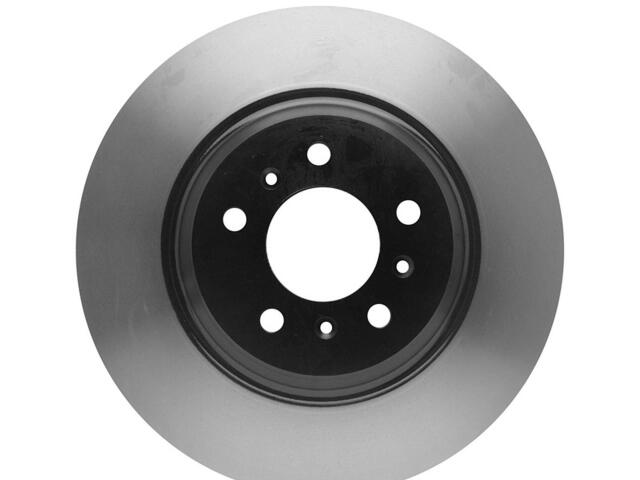

Rotor
ASTRA : 18A2414

Bolt Circle Diameter (IN): 4.52
Bolt Circle Diameter (MM): 115
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Discard Thickness (IN): 1.126
Discard Thickness (MM): 28.6
Hat Finish: Painted
Height (IN): 2.8
Length (IN): 13
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.557
Mounting Bolt Hole Diameter (MM): 14.15
Nominal Thickness (IN): 1.187
Nominal Thickness (MM): 30.15
Outside Diameter (IN): 12.714
Outside Diameter (MM): 322.95
Overall Height (IN): 2.05
Overall Height (MM): 52.05
Overall Rotor Diameter (mm): 322.83mm
Slotted: No
Solid Or Vented Type Rotor: Vented
Weight (lb): 21.9
Width (IN): 13

适用车型

BUICK (3)

CADILLAC (1)

CHEVROLET (2)

OE号码

品牌	号码
OE	1920143*
