ASTRA
18A2413

第三方数据ASTRA : 18A2413

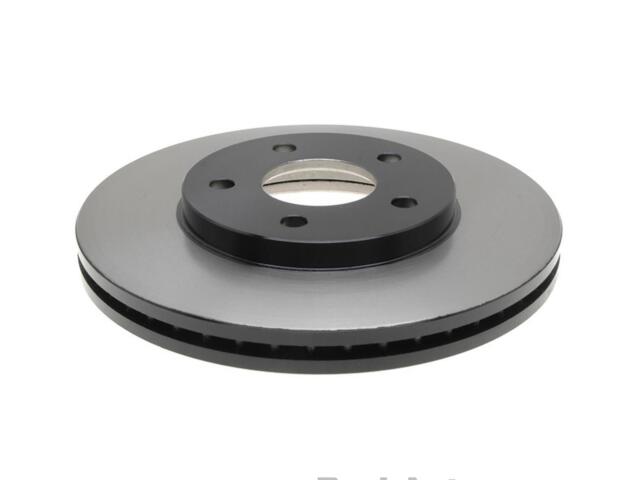

Rotor
ASTRA : 18A2413

Bolt Circle Diameter (IN): 4.33
Bolt Circle Diameter (MM): 110
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23
Hat Finish: Painted
Height (IN): 2
Length (IN): 11.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.331
Mounting Bolt Hole Circle Diameter (MM): 110
Mounting Bolt Hole Diameter (IN): 0.557
Mounting Bolt Hole Diameter (MM): 14.15
Nominal Thickness (IN): 1.021
Nominal Thickness (MM): 25.95
Outside Diameter (IN): 10.864
Outside Diameter (MM): 275.95
Overall Height (IN): 1.686
Overall Height (MM): 42.8
Overall Rotor Diameter (mm): 275.84mm
Slotted: No
Solid Or Vented Type Rotor: Vented
Weight (lb): 16
Width (IN): 12.2

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	1920142*
