ASTRA
18A2388

第三方数据ASTRA : 18A2388

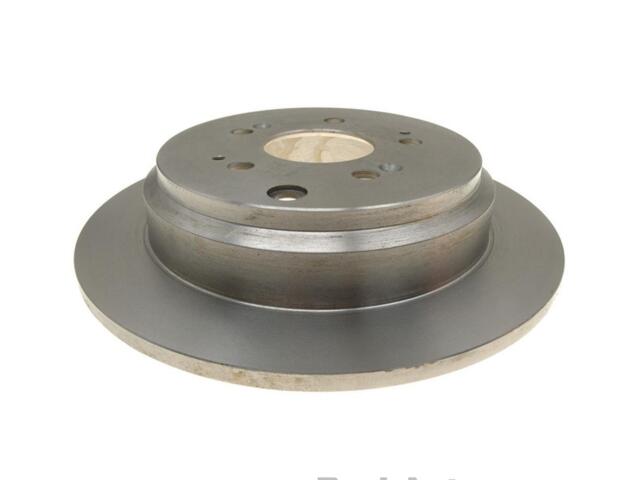

Rotor
ASTRA : 18A2388

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.7
Bolt Circle Diameter (MM): 120
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.1mm
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9
Hat Finish: Turned
Height (IN): 2.5
Height (MM): 63.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 119.9
Mounting Bolt Hole Diameter (IN): 0.576
Mounting Bolt Hole Diameter (MM): 14.65
Nominal Thickness (IN): 0.433
Nominal Thickness (MM): 11
Outside Diameter (IN): 12.313
Outside Diameter (MM): 312.75
Overall Height (IN): 2.51
Overall Height (MM): 63.75
Overall Rotor Diameter (mm): 312.67mm
Pad Contact Surface Width (IN): 1.6
Pad Contact Surface Width (MM): 41.65
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

HONDA (1)

OE号码

品牌	号码
OE	1918359*
