第三方数据ASTRA : 18A2363SD

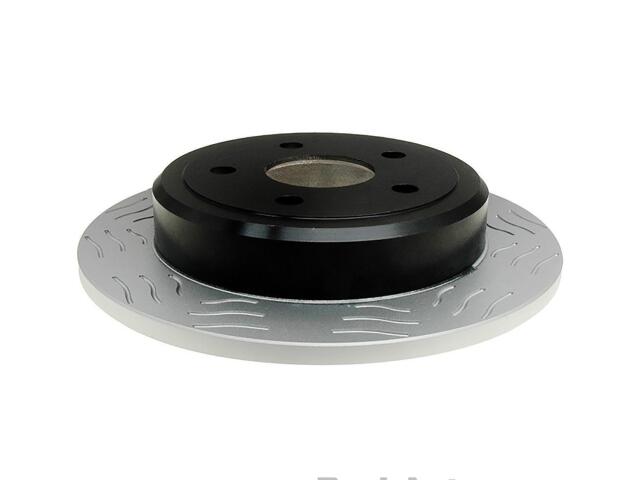

Rotor
ASTRA : 18A2363SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 127
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Disc Finish: Turned
Discard Thickness (IN): 0.49
Discard Thickness (MM): 12.45
Hat Finish: Turned
Height (IN): 2.6
Height (MM): 66.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Nominal Thickness (IN): 0.55
Nominal Thickness (MM): 13.95
Outside Diameter (IN): 12.6
Outside Diameter (MM): 320
Overall Rotor Diameter (mm): 319.79mm
Pad Contact Surface Width (IN): 1.9
Pad Contact Surface Width (MM): 48.5
Rust Resistant Coating: Yes
Slotted: Yes
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

JEEP (2)

GRAND CHEROKEE (4)

3.0L V6 DIESEL Turbocharged (3)

3.7L V6 (6)

4.7L V8 (5)

5.7L V8 (6)

COMMANDER (3)

OE号码

品牌	号码
OE	8887518*
