ASTRA
18A2363

第三方数据ASTRA : 18A2363

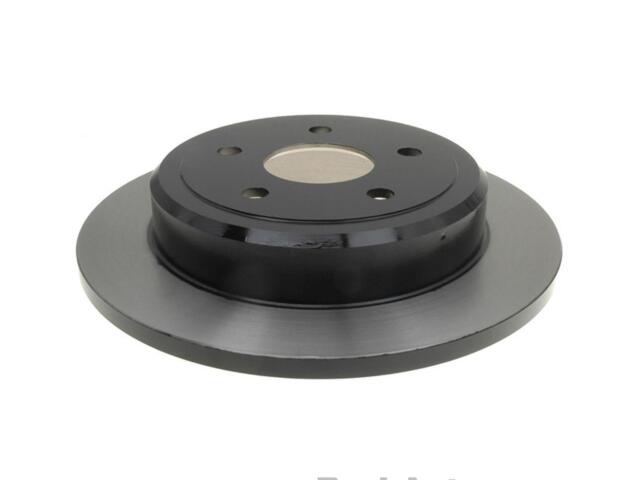

Rotor
ASTRA : 18A2363

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 127
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72mm
Center Hole Diameter (IN): 2.84
Center Hole Diameter (MM): 72.15
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.492
Discard Thickness (MM): 12.5
Hat Finish: Turned
Height (IN): 2.6
Height (MM): 66.2
Length (IN): 13
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.636
Mounting Bolt Hole Diameter (MM): 16.15
Nominal Thickness (IN): 0.551
Nominal Thickness (MM): 14
Outside Diameter (IN): 12.595
Outside Diameter (MM): 319.9
Overall Height (IN): 2.615
Overall Height (MM): 66.4
Overall Rotor Diameter (mm): 319.79mm
Pad Contact Surface Width (IN): 1.9
Pad Contact Surface Width (MM): 48.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 17.3
Width (IN): 13

适用车型

JEEP (2)

GRAND CHEROKEE (4)

3.0L V6 DIESEL Turbocharged (3)

3.7L V6 (6)

4.7L V8 (5)

5.7L V8 (6)

COMMANDER (3)

OE号码

品牌	号码
OE	1918361*
