ASTRA
18A2361

第三方数据ASTRA : 18A2361

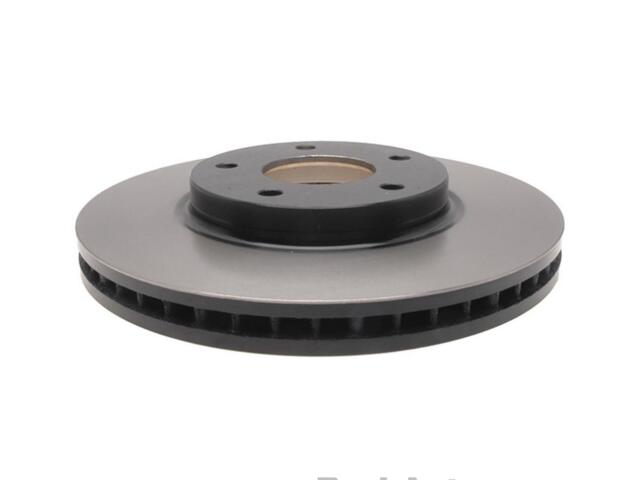

Rotor
ASTRA : 18A2361

Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Hat Finish: Painted
Height (IN): 3.62
Length (IN): 12.38
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.495
Mounting Bolt Hole Diameter (MM): 12.55
Nominal Thickness (IN): 1.101
Nominal Thickness (MM): 27.95
Outside Diameter (IN): 11.409
Outside Diameter (MM): 289.8
Overall Height (IN): 1.939
Overall Height (MM): 49.25
Overall Rotor Diameter (mm): 289.56mm
Slotted: No
Solid Or Vented Type Rotor: Vented
Weight (lb): 10
Width (IN): 12.38

适用车型

NISSAN (1)

INFINITI (1)

OE号码

品牌	号码
OE	1918361*
