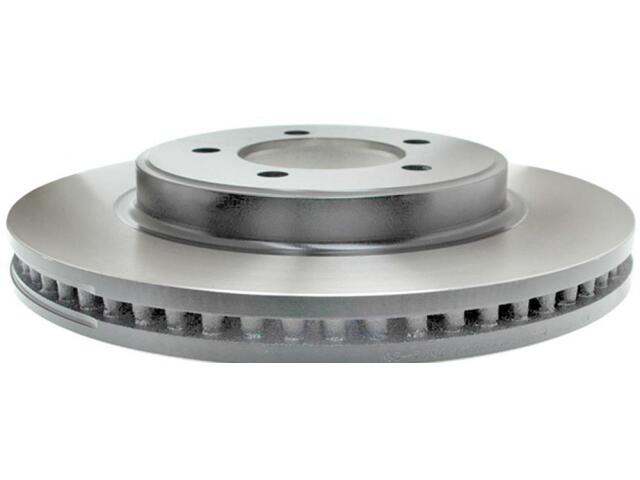

Rotor
ASTRA : 18A2352

Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Discard Thickness (IN): 1.122
Discard Thickness (MM): 28.5
Hat Finish: Painted
Height (IN): 2.7
Length (IN): 12.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.7
Nominal Thickness (IN): 1.176
Nominal Thickness (MM): 29.85
Outside Diameter (IN): 12.009
Outside Diameter (MM): 305.05
Overall Height (IN): 2.13
Overall Height (MM): 54.1
Overall Rotor Diameter (mm): 307.09mm
Slotted: No
Solid Or Vented Type Rotor: Vented
Weight (lb): 22
Width (IN): 12.3

适用车型

FORD (2)

EXPLORER (2)

EXPLORER SPORT TRAC (2)

MERCURY (1)

OE号码

品牌	号码
OE	1917142*
