ASTRA
18A2351

第三方数据ASTRA : 18A2351

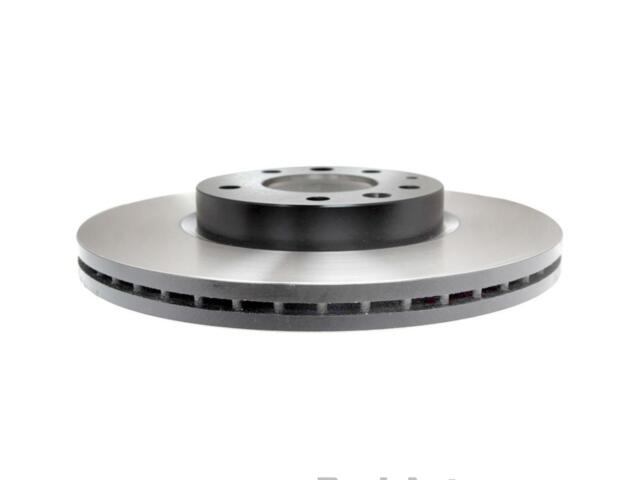

Rotor
ASTRA : 18A2351

Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23
Hat Finish: Painted
Height (IN): 2.7
Length (IN): 12.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.511
Mounting Bolt Hole Diameter (MM): 13
Nominal Thickness (IN): 0.979
Nominal Thickness (MM): 24.85
Outside Diameter (IN): 11.77
Outside Diameter (MM): 298.95
Overall Height (IN): 1.908
Overall Height (MM): 48.45
Overall Rotor Diameter (mm): 298.96mm
Slotted: No
Solid Or Vented Type Rotor: Vented
Weight (lb): 19
Width (IN): 12.3

适用车型

FORD (1)

FUSION (5)

2.3L L4 (4)

2.5L L4 (3)

2.5L L4 ELECTRIC/GAS (3)

3.0L V6 (7)

3.5L V6 (3)

MAZDA (1)

LINCOLN (2)

MERCURY (1)

OE号码

品牌	号码
OE	1917142*
