ASTRA
18A2341

第三方数据ASTRA : 18A2341

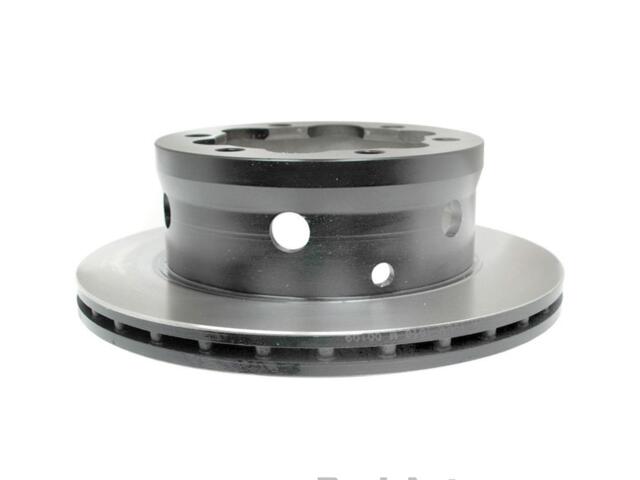

Rotor
ASTRA : 18A2341

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.7
Bolt Circle Diameter (MM): 145
Center Bore Diameter (IN): 4.7in
Center Bore Diameter (MM): 120.1mm
Center Hole Diameter (IN): 4.728
Center Hole Diameter (MM): 120.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 0.748
Discard Thickness (MM): 19
Hat Finish: Turned
Height (IN): 3.7
Height (MM): 92.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.709
Mounting Bolt Hole Circle Diameter (MM): 145
Mounting Bolt Hole Diameter (IN): 5.709
Mounting Bolt Hole Diameter (MM): 145
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22
Outside Diameter (IN): 11.23
Outside Diameter (MM): 285.25
Overall Height (IN): 3.655
Overall Height (MM): 92.85
Overall Rotor Diameter (mm): 285.24mm
Pad Contact Surface Width (IN): 1.9
Pad Contact Surface Width (MM): 48.25
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

DODGE (2)

FREIGHTLINER (2)

OE号码

品牌	号码
OE	1917141*
