ASTRA
18A2332PV

第三方数据ASTRA : 18A2332PV

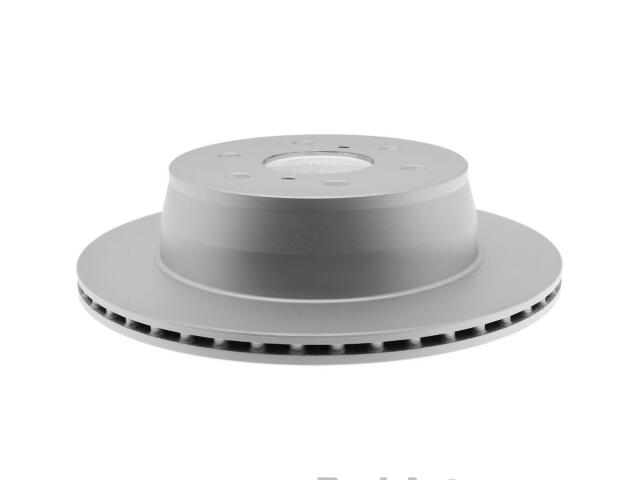

Rotor
ASTRA : 18A2332PV

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Center Bore Diameter (IN): 3.1in
Center Bore Diameter (MM): 78.7mm
Center Hole Diameter (IN): 3.1
Center Hole Diameter (MM): 78.75
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Discard Thickness (IN): 0.73
Discard Thickness (MM): 18.55
Height (IN): 3.3
Height (MM): 83.8
Inside Diameter (IN): 9.831
Inside Diameter (MM): 249.7
Length (IN): 14.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.1
Mounting Bolt Hole Circle Diameter (MM): 78.75
Mounting Bolt Hole Diameter (IN): 0.645
Mounting Bolt Hole Diameter (MM): 16.4
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20.05
Outside Diameter (IN): 13.58
Outside Diameter (MM): 344.95
Overall Height (IN): 3.35
Overall Height (MM): 85.1
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 21.7
Width (IN): 14.1

适用车型

CADILLAC (1)

CHEVROLET (5)

SILVERADO 1500 (6)

4.3L V6 (7)

4.8L V8 (7)

5.3L V8 (7)

6.0L V8 (3)

6.0L V8 ELECTRIC/GAS (5)

6.2L V8 (5)

TAHOE (4)

4.8L V8 (3)

5.3L V8 (14)

6.0L V8 ELECTRIC/GAS (6)

6.2L V8 (5)

AVALANCHE (2)

SUBURBAN (2)

SUBURBAN 1500 (2)

GMC (5)

SIERRA 1500 (6)

4.3L V6 (7)

4.8L V8 (7)

5.3L V8 (7)

6.0L V8 (3)

6.0L V8 ELECTRIC/GAS (5)

6.2L V8 (7)

YUKON (4)

4.8L V8 (3)

5.3L V8 (8)

6.0L V8 ELECTRIC/GAS (6)

6.2L V8 (8)

YUKON XL (2)

YUKON XL 1500 (3)

5.3L V8 (8)

6.0L V8 (3)

6.2L V8 (8)

SIERRA 1500 CLASSIC (1)

OE号码

品牌	号码
OE	1928630*

品牌	号码
OE	1931073*
