ASTRA
18A2326SD

第三方数据ASTRA : 18A2326SD

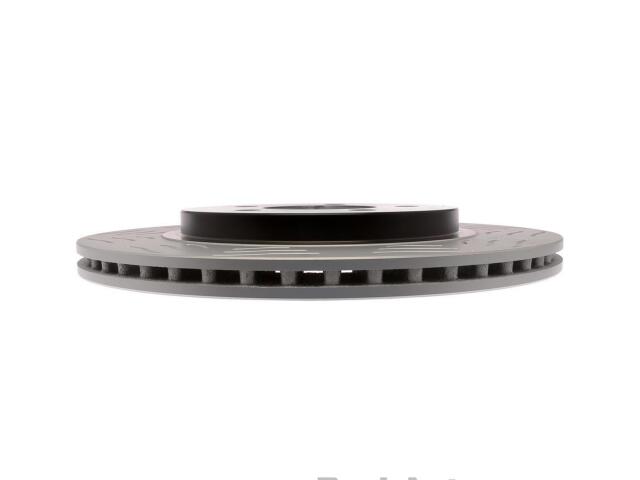

Rotor
ASTRA : 18A2326SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.7mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 0.69
Discard Thickness (MM): 17.55
Hat Finish: Turned
Height (IN): 1.4
Height (MM): 35
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Nominal Thickness (IN): 0.74
Nominal Thickness (MM): 18.8
Outside Diameter (IN): 11.8
Outside Diameter (MM): 300
Overall Rotor Diameter (mm): 299.97mm
Pad Contact Surface Width (IN): 2
Pad Contact Surface Width (MM): 50.2
Rust Resistant Coating: Yes
Slotted: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

FORD (1)

MUSTANG (5)

3.7L V6 (4)

4.0L V6 (6)

4.6L V8 (6)

5.0L V8 (4)

5.4L V8 Supercharged (6)

OE号码

品牌	号码
OE	8887518*
