ASTRA
18A2322PV

第三方数据ASTRA : 18A2322PV

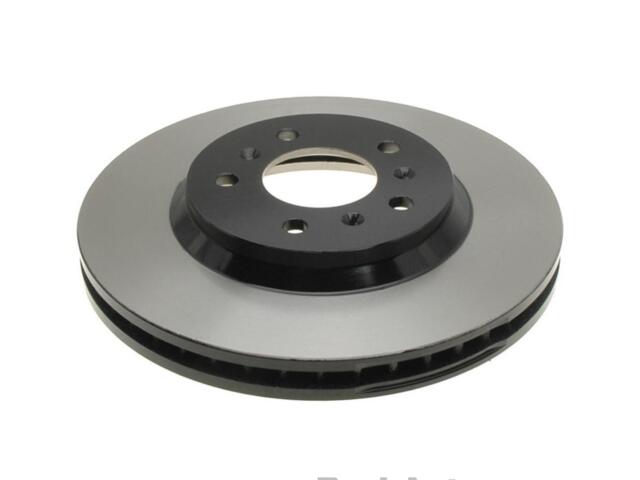

Rotor
ASTRA : 18A2322PV

Abs Tone Ring Included: No
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 1.126
Discard Thickness (MM): 28.6
Hat Finish: Plain
Height (IN): 2.3
Length (IN): 12.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.559
Mounting Bolt Hole Diameter (MM): 14.2
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 11.928
Outside Diameter (MM): 302.95
Overall Height (IN): 2.045
Overall Height (MM): 51.95
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 19.2
Width (IN): 12.3

适用车型

BUICK (1)

CHEVROLET (3)

IMPALA (4)

3.5L V6 (6)

3.6L V6 (2)

3.9L V6 (6)

5.3L V8 (4)

MONTE CARLO (3)

IMPALA LIMITED (1)

OE号码

品牌	号码
OE	1924138*

品牌	号码
OE	1931073*
