ASTRA
18A2321PV

第三方数据ASTRA : 18A2321PV

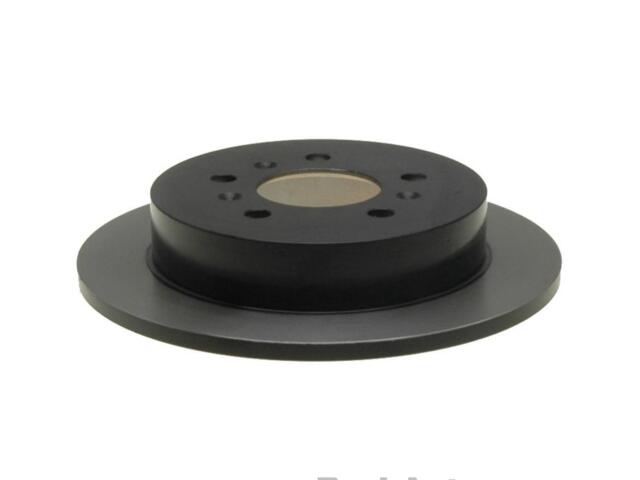

Rotor
ASTRA : 18A2321PV

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.527
Bolt Circle Diameter (MM): 115
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 68.5mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Discard Thickness (IN): 0.35
Discard Thickness (MM): 8.9
Height (IN): 1.9
Height (MM): 48.2
Length (IN): 11.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115.05
Mounting Bolt Hole Diameter (IN): 0.557
Mounting Bolt Hole Diameter (MM): 14.15
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 10.9
Outside Diameter (IN): 10.9
Outside Diameter (MM): 276.8
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 11.2
Width (IN): 11.2

适用车型

BUICK (2)

CHEVROLET (2)

IMPALA (3)

3.5L V6 (5)

3.9L V6 (5)

5.3L V8 (4)

MONTE CARLO (3)

OE号码

品牌	号码
OE	18A274*

品牌	号码
OE	1928641*

品牌	号码
OE	1931073*
