ASTRA
18A2308SD

第三方数据ASTRA : 18A2308SD

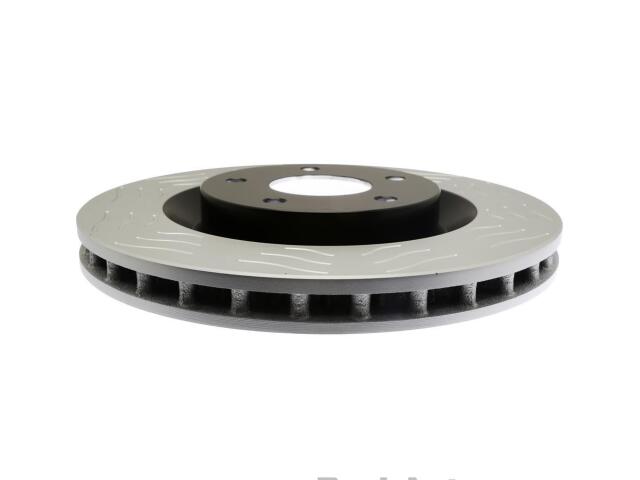

Rotor
ASTRA : 18A2308SD

Bolt Circle Diameter (IN): 4.75
Bolt Circle Diameter (MM): 120.65
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.7
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Bare
Discard Thickness (IN): 1.181
Discard Thickness (MM): 30
Height (IN): 1.789
Height (MM): 45.45
Inside Diameter (IN): 8.52
Inside Diameter (MM): 216.4
Mounting Bolt Hole Circle Diameter (IN): 4.75
Mounting Bolt Hole Circle Diameter (MM): 120.65
Mounting Bolt Hole Diameter (IN): 0.524
Mounting Bolt Hole Diameter (MM): 13.3
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 12.795
Outside Diameter (MM): 325
Overall Height (IN): 1.789
Overall Height (MM): 45.45
Solid Or Vented Type Rotor: Vented

适用车型

CADILLAC (1)

CHEVROLET (1)

CORVETTE (4)

6.0L V8 (3)

6.2L V8 (6)

6.2L V8 Supercharged (3)

7.0L V8 (6)

OE号码

品牌	号码
OE	1938362*
