ASTRA
18A1798

第三方数据ASTRA : 18A1798

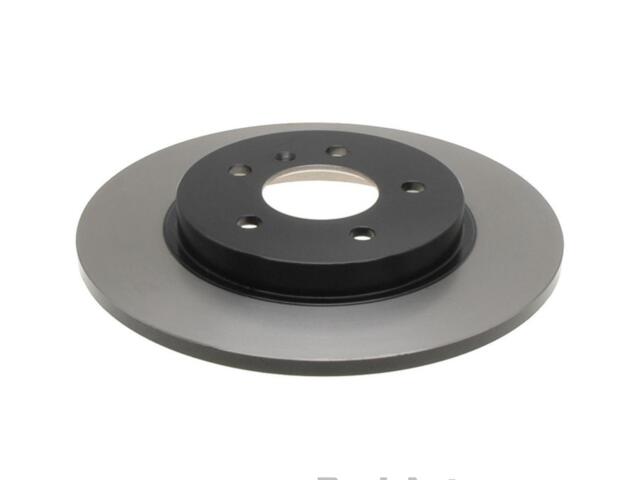

Rotor
ASTRA : 18A1798

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 115
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.7mm
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.413
Discard Thickness (MM): 10.5
Hat Finish: Turned
Height (IN): 1.4
Height (MM): 34.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.557
Mounting Bolt Hole Diameter (MM): 14.15
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.815
Outside Diameter (MM): 300.1
Overall Height (IN): 1.37
Overall Height (MM): 34.8
Overall Rotor Diameter (mm): 299.97mm
Pad Contact Surface Width (IN): 2.1
Pad Contact Surface Width (MM): 53.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

BUICK (1)

CHEVROLET (1)

PONTIAC (1)

SATURN (1)

OE号码

品牌	号码
OE	1917535*
