ASTRA
18A1776SD

第三方数据ASTRA : 18A1776SD

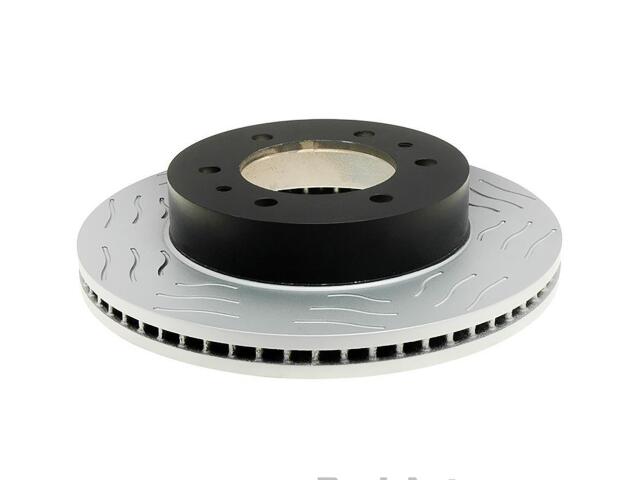

Rotor
ASTRA : 18A1776SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Center Bore Diameter (IN): 4in
Center Bore Diameter (MM): 100.7mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.04
Discard Thickness (MM): 26.4
Hat Finish: Turned
Height (IN): 2.8
Height (MM): 70.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 27.95
Outside Diameter (IN): 12.4
Outside Diameter (MM): 315
Overall Rotor Diameter (mm): 314.96mm
Pad Contact Surface Width (IN): 2.2
Pad Contact Surface Width (MM): 56
Rust Resistant Coating: Yes
Slotted: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

HUMMER (2)

OE号码

品牌	号码
OE	8887517*
