ASTRA
18A1776

第三方数据ASTRA : 18A1776

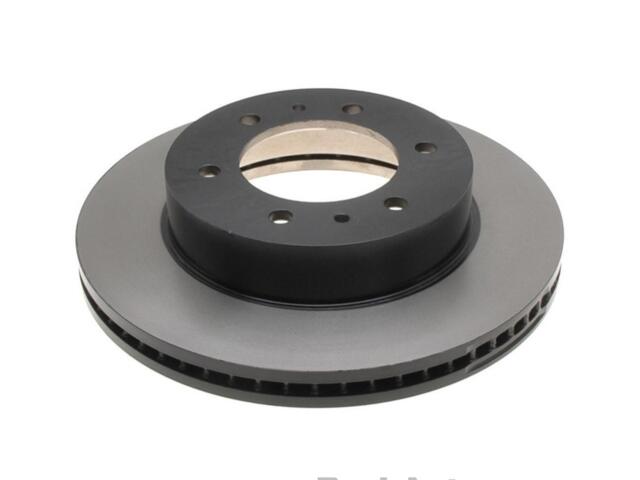

Rotor
ASTRA : 18A1776

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Center Bore Diameter (IN): 4in
Center Bore Diameter (MM): 100.7mm
Center Hole Diameter (IN): 3.965
Center Hole Diameter (MM): 100.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Ground
Discard Thickness (IN): 1.043
Discard Thickness (MM): 26.5
Hat Finish: Turned
Height (IN): 2.8
Height (MM): 70.1
Length (IN): 12.6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 5.5
Mounting Bolt Hole Diameter (MM): 139.7
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.402
Outside Diameter (MM): 315
Overall Height (IN): 2.76
Overall Height (MM): 70.1
Overall Rotor Diameter (mm): 314.96mm
Pad Contact Surface Width (IN): 2.2
Pad Contact Surface Width (MM): 56
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 21.2
Width (IN): 12.6

适用车型

HUMMER (2)

OE号码

品牌	号码
OE	1917535*
