ASTRA
18A1759

第三方数据ASTRA : 18A1759

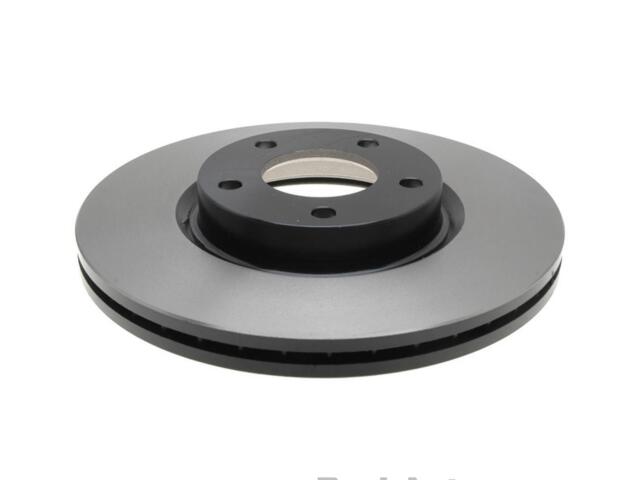

Rotor
ASTRA : 18A1759

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72.1mm
Center Hole Diameter (IN): 2.84
Center Hole Diameter (MM): 72.15
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23
Hat Finish: Turned
Height (IN): 1.9
Height (MM): 48.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.7
Nominal Thickness (IN): 0.984
Nominal Thickness (MM): 25
Outside Diameter (IN): 11.81
Outside Diameter (MM): 299.95
Overall Height (IN): 1.905
Overall Height (MM): 48.4
Overall Rotor Diameter (mm): 299.97mm
Pad Contact Surface Width (IN): 2.4
Pad Contact Surface Width (MM): 59.7
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

MAZDA (2)

3 (3)

5 (2)

OE号码

品牌	号码
OE	1917534*
