ASTRA
18A1756

第三方数据ASTRA : 18A1756

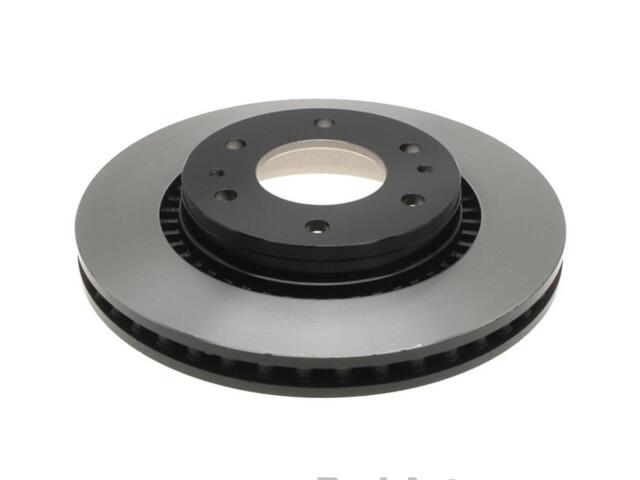

Rotor
ASTRA : 18A1756

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 127
Center Bore Diameter (IN): 3.1in
Center Bore Diameter (MM): 79.2mm
Center Hole Diameter (IN): 3.12
Center Hole Diameter (MM): 79.25
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.083
Discard Thickness (MM): 27.5
Hat Finish: Turned
Height (IN): 2.9
Height (MM): 54.4
Length (IN): 12.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.516
Mounting Bolt Hole Diameter (MM): 13.1
Nominal Thickness (IN): 1.142
Nominal Thickness (MM): 29
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 2.14
Overall Height (MM): 54.35
Overall Rotor Diameter (mm): 302.01mm
Pad Contact Surface Width (IN): 2
Pad Contact Surface Width (MM): 50
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 19.9
Width (IN): 12.2

适用车型

ISUZU (1)

BUICK (1)

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	1917534*
