ASTRA
18A1689

第三方数据ASTRA : 18A1689

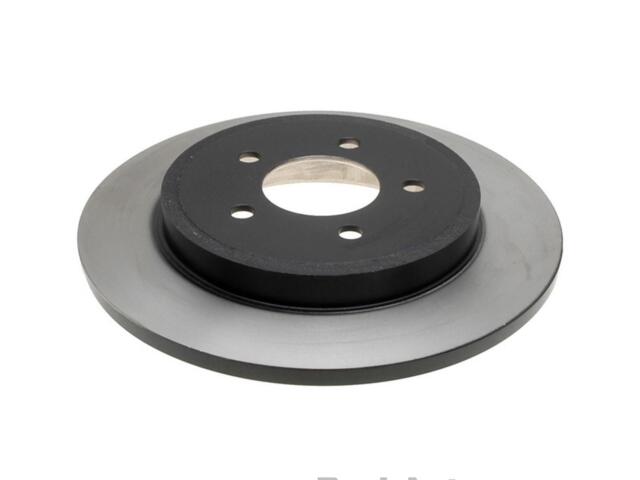

Rotor
ASTRA : 18A1689

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72mm
Center Hole Diameter (IN): 2.84
Center Hole Diameter (MM): 72.15
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.433
Discard Thickness (MM): 11
Hat Finish: Turned
Height (IN): 2.2
Height (MM): 55.9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.546
Mounting Bolt Hole Diameter (MM): 13.85
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.885
Outside Diameter (MM): 301.9
Overall Height (IN): 2.2
Overall Height (MM): 55.9
Overall Rotor Diameter (mm): 301.75mm
Pad Contact Surface Width (IN): 2
Pad Contact Surface Width (MM): 51
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

FORD (1)

ESCAPE (5)

2.3L L4 (4)

2.3L L4 ELECTRIC/GAS (4)

2.5L L4 (2)

2.5L L4 ELECTRIC/GAS (2)

3.0L V6 (6)

MAZDA (1)

MERCURY (1)

OE号码

品牌	号码
OE	1917532*
