ASTRA
18A1685

第三方数据ASTRA : 18A1685

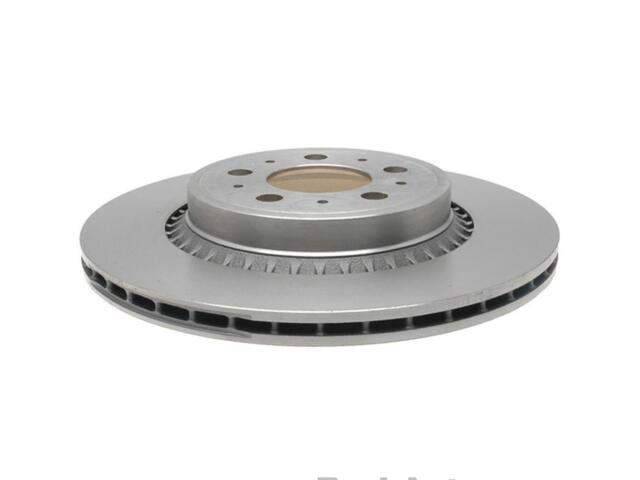

Rotor
ASTRA : 18A1685

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.3
Bolt Circle Diameter (MM): 108
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 68mm
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Ground
Discard Thickness (IN): 0.709
Discard Thickness (MM): 18
Hat Finish: Turned
Height (IN): 2.5
Height (MM): 64.6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 107.95
Mounting Bolt Hole Diameter (IN): 0.645
Mounting Bolt Hole Diameter (MM): 16.4
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20
Outside Diameter (IN): 12.126
Outside Diameter (MM): 308
Overall Height (IN): 2.543
Overall Height (MM): 64.6
Overall Rotor Diameter (mm): 307.85mm
Pad Contact Surface Width (IN): 2
Pad Contact Surface Width (MM): 52
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

VOLVO (1)

XC90 (4)

2.5L L5 Turbocharged (7)

2.9L L6 Turbocharged (2)

3.2L L6 (8)

4.4L V8 (7)

OE号码

品牌	号码
OE	1914243*
