ASTRA
18A1680

第三方数据ASTRA : 18A1680

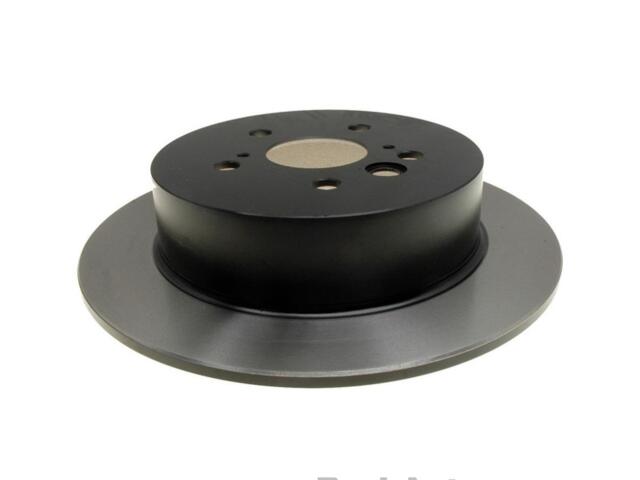

Rotor
ASTRA : 18A1680

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.4in
Center Bore Diameter (MM): 62mm
Center Hole Diameter (IN): 2.44
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8
Hat Finish: Turned
Height (IN): 2.5
Height (MM): 62.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.573
Mounting Bolt Hole Diameter (MM): 14.55
Nominal Thickness (IN): 0.354
Nominal Thickness (MM): 9
Outside Diameter (IN): 11.93
Outside Diameter (MM): 303
Overall Height (IN): 2.47
Overall Height (MM): 62.75
Overall Rotor Diameter (mm): 303.02mm
Pad Contact Surface Width (IN): 1.8
Pad Contact Surface Width (MM): 45.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	1917532*
