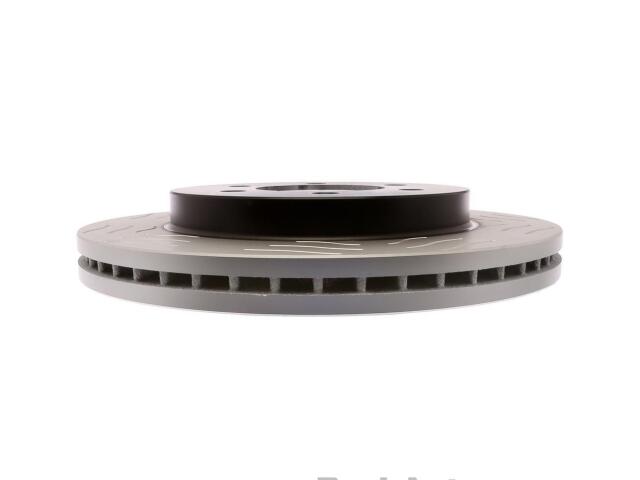

Rotor
ASTRA : 18A1625SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.3
Bolt Circle Diameter (MM): 135
Center Bore Diameter (IN): 3.5in
Center Bore Diameter (MM): 90.1mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.12
Discard Thickness (MM): 28.45
Hat Finish: Turned
Height (IN): 2.1
Height (MM): 53.9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.31
Mounting Bolt Hole Circle Diameter (MM): 134.85
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 29.95
Outside Diameter (IN): 13
Outside Diameter (MM): 330
Pad Contact Surface Width (IN): 2.6
Pad Contact Surface Width (MM): 67
Rust Resistant Coating: Yes
Slotted: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	8887517*
